Re-Verber-Ray Tube Heater Parts

Detroit Radiant Products Company offers the most extensive line of low-intensity infrared radiant tube heaters available. From our award-winning, engineered vacuum systems to our patented, two-stage line of heaters, you’ll find a product that ideally suits your needs. Re-Verber-Ray® low-intensity heaters are a little- to no-maintenance, cost-effective and energy-efficient solution for heating a wide variety of areas.



Series MBH

Version

 Documentation
1 CL All 09/04 to 08/06 IOPM*
2 CL All 08/06 to 06/15 IOPM*
3 CL3 All 05/17 to Present IOPM
4 CX All 09/04 to 07/07 IOPM*
5 CX All 07/07 to 06/15 IOPM*
6 CX3 All 05/17 to Present IOPM
7 DBS All 01/94 to 09/01 IOPM*
8 DES All 05/00 to 06/03 IOPM*
9 DES All 06/03 to 04/05 IOPM*
10 DES All 05/05 to 06/07 IOPM*
11 DES3 All 05/06 to 06/09 IOPM*
12 DES3 All 07/09 to 9/12 IOPM*
13 DES3 All 10/12 to 08/14 IOPM*
14 DES3 All 08/14 to Present IOPM
15 DET All 06/03 to 04/05 IOPM*
16 DET All 05/05 to 06/07 IOPM*
17 DET3 All 08/06 to 06/09 IOPM*
18 DET3 All 07/09 to 09/12 IOPM*
19 DET3 All 10/12 to 08/14 IOPM*
20 DET3 All 08/14 to Present IOPM
21 DRV All 01/91 to 12/01 IOPM*
22 DSRL All 01/21 to Present IOPM
23 DSRS All 01/21 to Present IOPM
24 DST All 03/16 to 05/17 IOPM*
25 DST All 06/17 to 08/25 IOPM*
26 DST All 09/25 to Present IOPM
27 DTH 40-100 11/86 & Prior IOPM*
28 DTHS 40-100 1984 & Prior IOPM*
29 DTHS 40-100 1985 to 11/86 IOPM*
30 DTH(S)-2 40-100 11/86 to 01/87 DTH IOPM*

DTHS IOPM*
31 DTH(S)-2 40-100 01/87 to 04/92 DTH IOPM*

DTHS IOPM*
32 DTH(S)-2 40-100 04/92 to 01/01 IOPM*
33 DTH(S)-2 125, 150 1988 to 1989 DTH IOPM*

DTHS IOPM*
34 DTH(S)-3 125 1989 to 1994 DTH IOPM*

DTHS IOPM*
35 DTH(S)-3 150 1990 to 1994 DTH IOPM*

DTHS IOPM*
36 DX All 01/93 to 05/04/95 IOPM*
37 DX All 05/04/95 to 09/95 IOPM*
38 DX All 09/95 to 08/00 IOPM*
39 DX-2 All 09/00 to 05/03 IOPM*
40 DX2 All 06/03 to 08/14 IOPM*
41 DX2 All 09/14 to Present IOPM
42 DX3 All 07/08 to 09/12 IOPM*
43 DX3 All 10/12 to 07/14 IOPM*
44 DX3 All 08/14 to 12/16 IOPM*
45 DX3L All 06/15 to Present IOPM
46 HL All 01/94 to 05/04/95 IOPM*
47 HL All 05/04/95 to 09/95 Contact Us
48 HL All 09/95 to 09/00 IOPM*
49 HL-2 All 09/00 to 08/02 IOPM*
50 HL-2 All 08/02 to 06/03 IOPM*
51 HL2 All 06/03 to 05/05 IOPM*
52 HL2 All 05/05 to 09/14 IOPM*
53 HL2 All 09/14 to 06/25 IOPM*
54 HL2 All 07/25 to Present IOPM
55 HL2-DS All 09/17 to 07/21 IOPM
56 HL3 All 07/08 to 09/12 IOPM*
57 HL3 All 10/12 to 07/14 IOPM*
58 HL3 All 08/14 to Present IOPM
59 HLV All 11/01 to 04/05 IOPM
60 HLV All 05/05 to Present IOPM
61 LD All 06/00 to 12/12 IOPM*
62 LD All 12/12 to 2014 IOPM*
63 LD3 All 12/13 to 10/16 IOPM*
64 LD3 All 11/16 to 09/21 IOPM*
65 LD3 All 10/21 to 07/25 IOPM*
66 LD3 All 08/25 to Present IOPM
67 LS All 06/00 to 12/12 IOPM*
68 LS All 12/12 to 2014 IOPM*
69 LS3 All 12/13 to 10/16 IOPM*
70 LS3 All 11/16 to 09/21 IOPM*
71 LS3 All 10/21 to 07/25 IOPM*
72 LS3 All 08/25 to Present IOPM*
73 MP All 10/11 to 12/23 IOPM*
74 MP3 All 01/24 to Present IOPM
75 QTD All 03/10 to 08/16 IOPM*
76 QTD2 All 09/16 to Present IOPM
77 QTS All 03/10 to 08/16 IOPM*
78 QTS2 All 09/16 to Present IOPM
79 RH All 07/01 to 04/05 IOPM*
80 RH All 05/05 to Present IOPM
81 RHT All 05/05 to Present IOPM
82 SV All 06/00 to 04/05 IOPM*
83 SV All 05/05 to Present IOPM
84 XTS All 08/99 to 05/03 IOPM*
85 XTS All 06/03 to 04/05 IOPM*
86 XTS All 05/05 to 04/08 IOPM*
87 XTS3 All 07/07 to 07/12 IOPM*
  • Discontinued
    series
  • Discontinued version
    of current series
  • Current version
    of current series

*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.

Categories

Gas Valves Part List

Image Description Price
TP-36NKIT

Replaces the TP-36 (WR 25K) Valve.
Kit consists of:
TP-107 Natural Gas Valve (VR-1324 @ 3.5″)
TP-78D Circuit Board
TP-78B Wire Harness
TP-390 (Circuit Board to Wire Harness Adaptor)

 $415.00
TP-36PKIT

Replaces the TP-36 (WR 25K) Valve.
Kit consists of:
TP-107P Propane Gas Valve (VR-1357 (10.0″) or VR-1357)
TP-78D Circuit Board
TP-78B Wire Harness
TP-390 (Circuit Board to Wire Harness Adaptor)

 $415.00
TP-208A

Gas Valve Mounting Bracket

 $3.75
TP-244

Plastic Gas Valve Vent

 $4.00
TP-245

3/16″ X 1/8″ Plastic Gas Valve 90° Vent

 $4.00
24V Two Stage Natural Gas Valve Assembly TP-840A

24V Two Stage Natural Gas Valve Assembly

 $230.00
24V Two Stage Propane Gas Valve Assembly TP-841A

24V Two Stage Propane Gas Valve Assembly

 $230.00
TP-1040

Single-Stage Gas Valve, Natural Gas

 $195.00
TP-1041

Single Stage Gas Valve, Propane Gas

 $195.00
TP-1240A

24V Natural Gas Valve Assembly

 $219.00
TP-1241A

24V Propane Gas Valve Assembly

 $219.00
TP-1540A

24V Natural Gas Valve Assembly

 $213.00
TP-1541A

24V Propane Gas Valve Assembly

 $213.00
TP-3008

Series 3 – Gas Valve Mounting Bracket

 $5.00
TP-3008A

Series 3 – Gas Valve Mounting Bracket

 $5.00

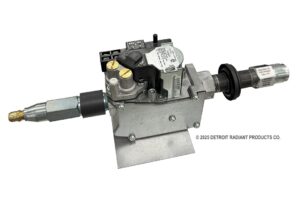

TP-3140

V3 24 V Two Stage Natural Gas Valve Assembly

 $242.00
TP-3141

V3 24 V Two Stage Propane Gas Valve Assembly

 $242.00
Natural Gas Valve Assembly TP-3240

Natural Gas Valve Assembly-DISCONTINUED-CONSULT FACTORY

 N/A
Propane Gas Valve Assembly TP-3241

Propane Gas Valve Assembly-DISCONTINUED-CONSULT FACTORY

 N/A
TP-6040

Natural Gas Valve; Single-Stage

 $175.00
TP-6041

LP Gas Valve; Single-Stage

 $175.00
TP-6140

Natural Gas Valve; Two Stage

 $220.00
TP-6141

Propane Gas Valve; Two-Stage

 $220.00
TP-7040

DST Natural Gas Valve Assembly

 $210.00
V-36

36E36A-233 Natural Gas Valve 1/2″

 N/A
V-36A

36E36A-234 LP Gas Valve 1/2″

 N/A
